Description

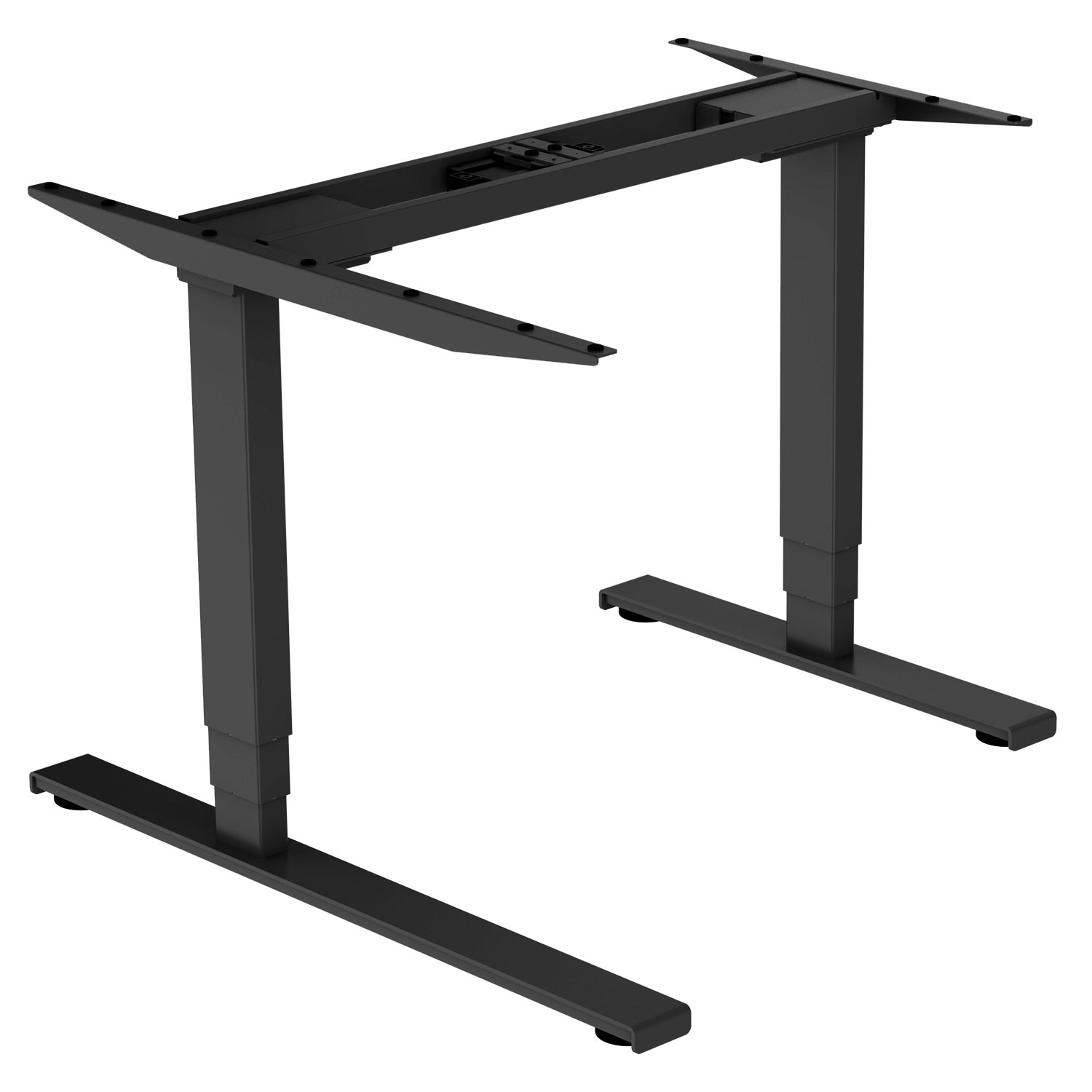

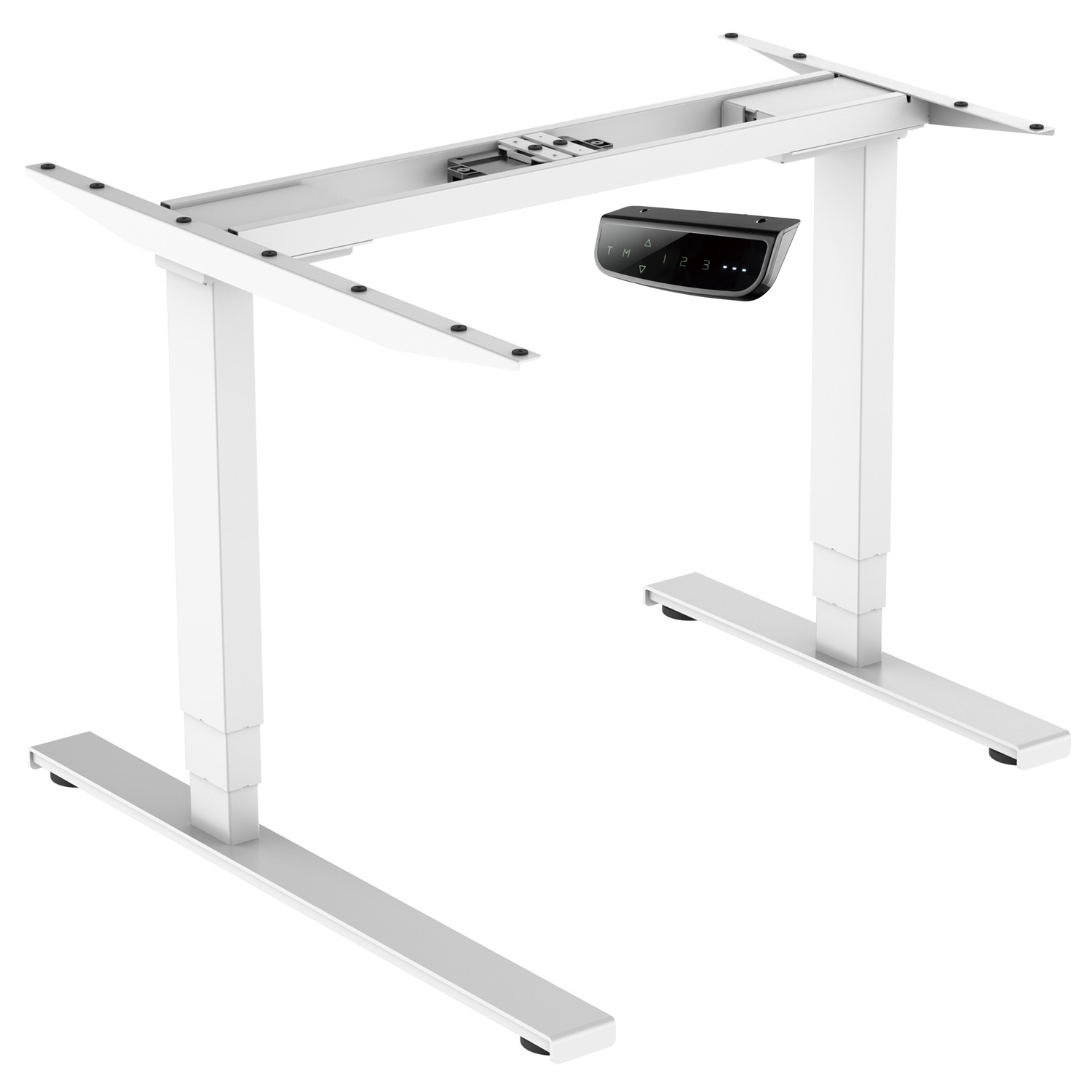

The Ergo Dual-Motor Frame with Radial Update Kit is a high-performance 3-leg solution designed to maximize your corner workspace. By combining the heavy-duty EDF12D dual-motor base with the RDKIT3 radial expansion, this configuration provides superior stability and surface area for professional multi-monitor setups.

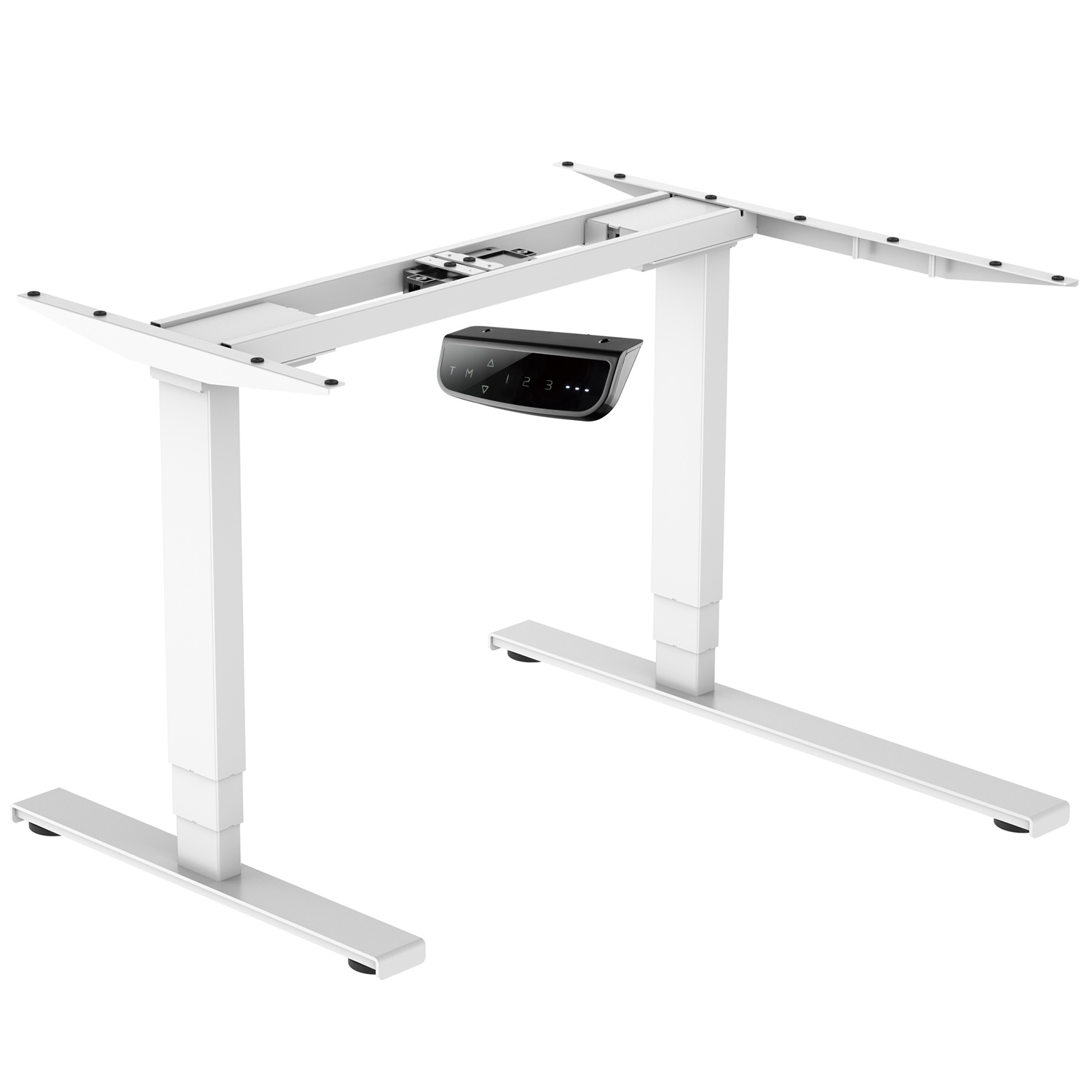

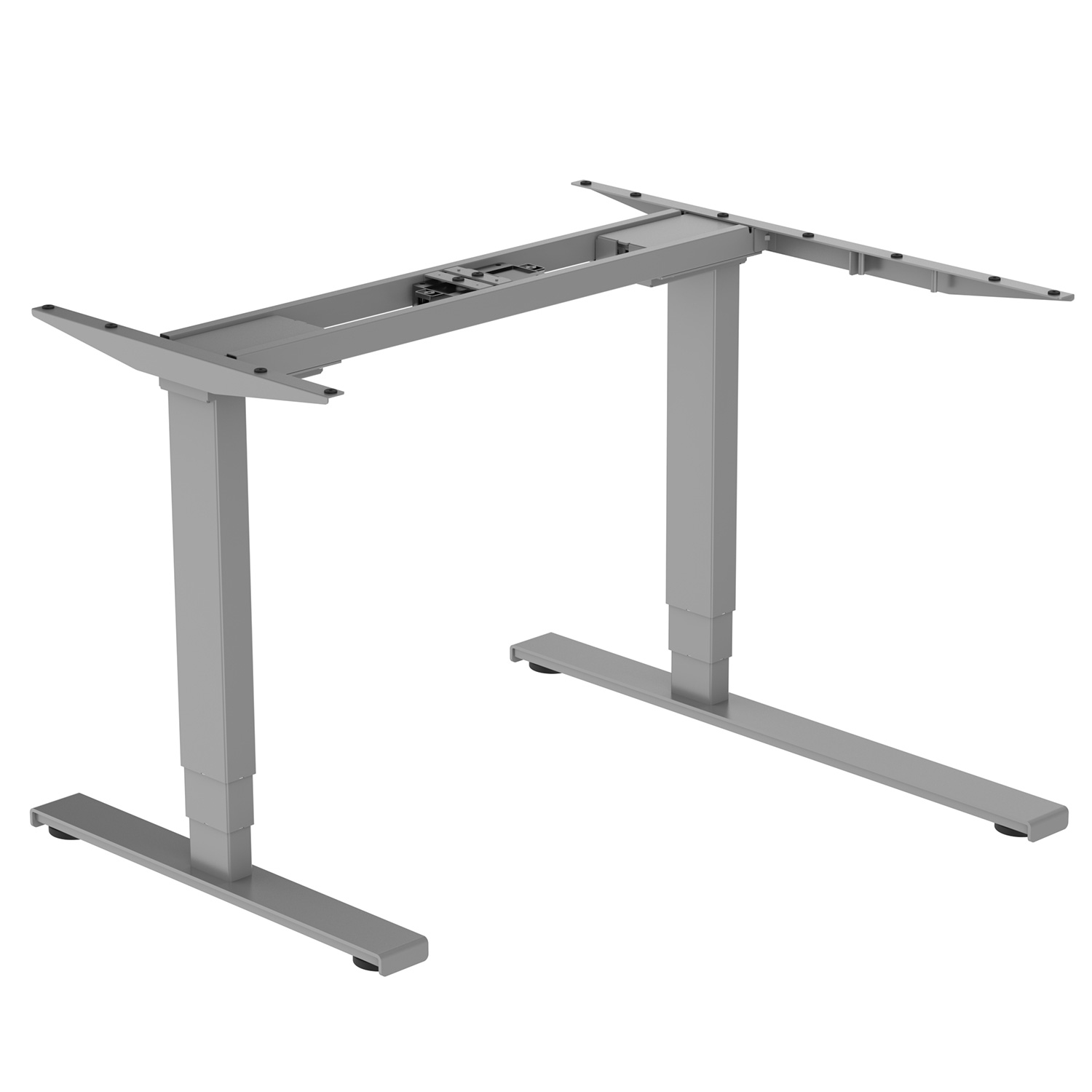

This kit is fully versatile, supporting both Left and Right-hand return configurations to fit your specific office layout. The 3-stage telescopic columns provide an expansive height range of 620mm to 1280mm, accommodating all users with smooth, synchronized transitions.

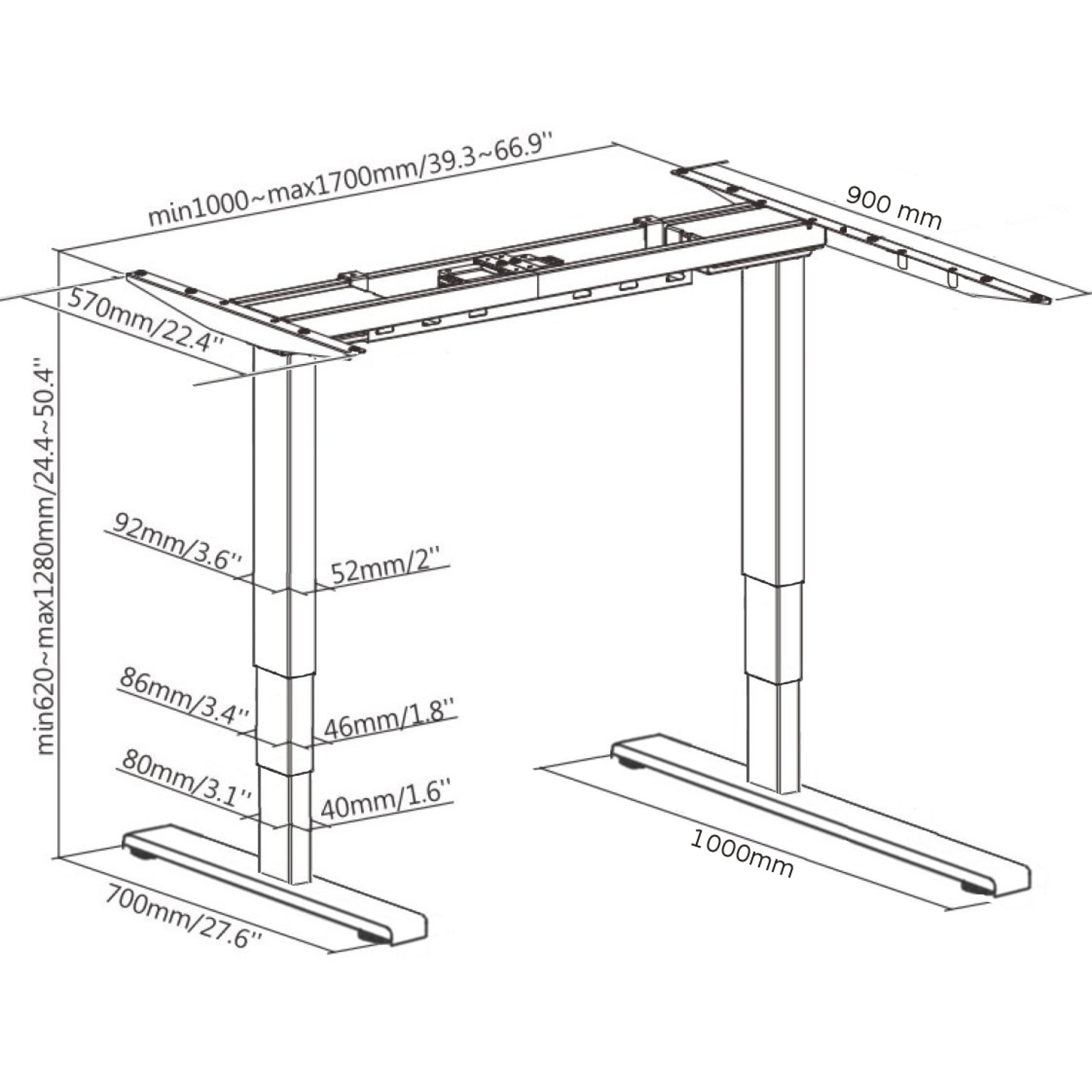

| Feature | Specification Details |
| Model SKU | EDF12RDK(B,S,W) |
| Frame Type | 3-Leg Radial / Corner |
| Height Range | 620mm – 1280mm |
| Load Capacity | 125kg |
| Adjustment Speed | 38mm/s |
| Min / Max Top Width | 1000mm / 1800mm |
| Return Top Width | 1000mm – 1200mm |
| Feet Size | 700mm |
| Top Bracket Size | 570mm |
| Available Finishes | Black, White, Silver |
| Castor Compatibility | Velo MW1015A (M10 Threaded Stem) |
