Description
The TCM01 Universal Thin Client Mount is a versatile mounting solution designed to clear desk clutter by securing your Mini PC or Thin Client in three different ways. Whether you want to hide your computer behind a monitor, tuck it under your desktop, or clip it directly to a monitor arm pole, the TCM01 provides a secure and professional fit.

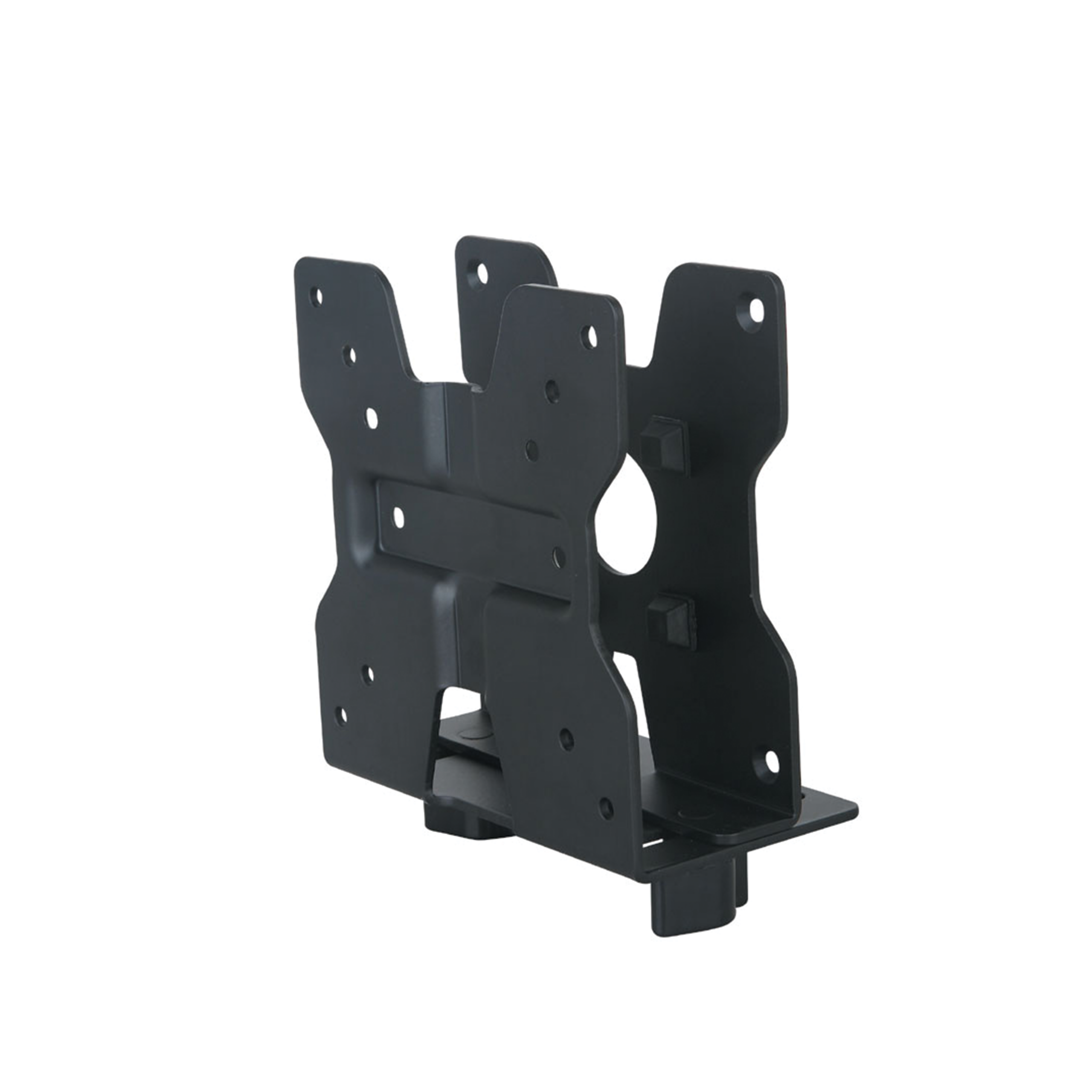

Constructed from heavy-duty steel, the bracket set features an adjustable width mechanism (15mm to 63mm) to accommodate various device thicknesses. The open-frame design ensures that your device maintains proper ventilation while allowing easy access to all ports and power buttons.
Three Versatile Mounting Methods
This single kit includes all the hardware required for three distinct installation types:
-

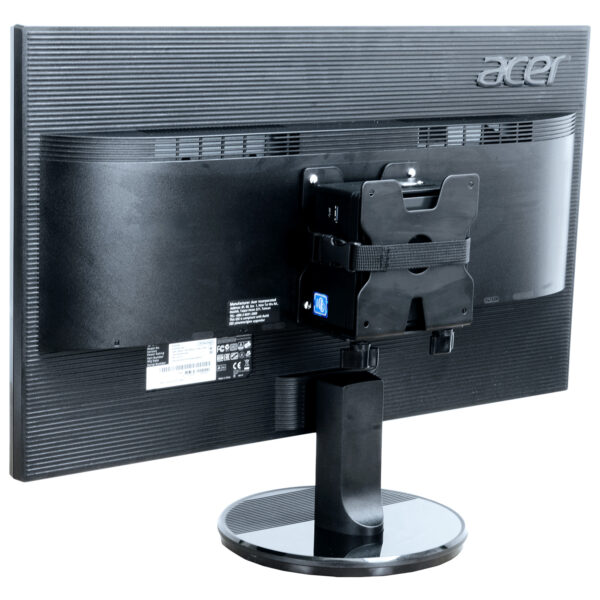

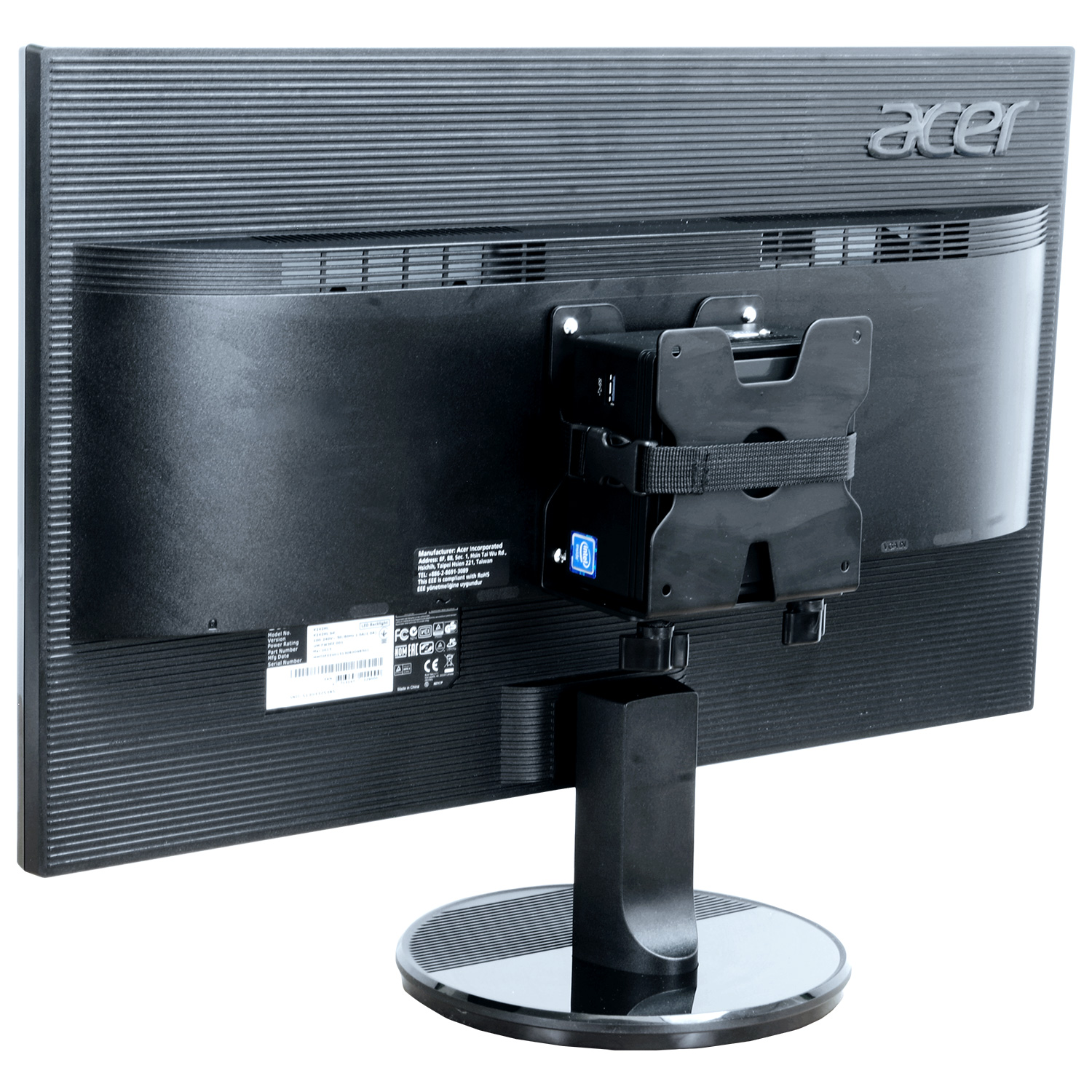

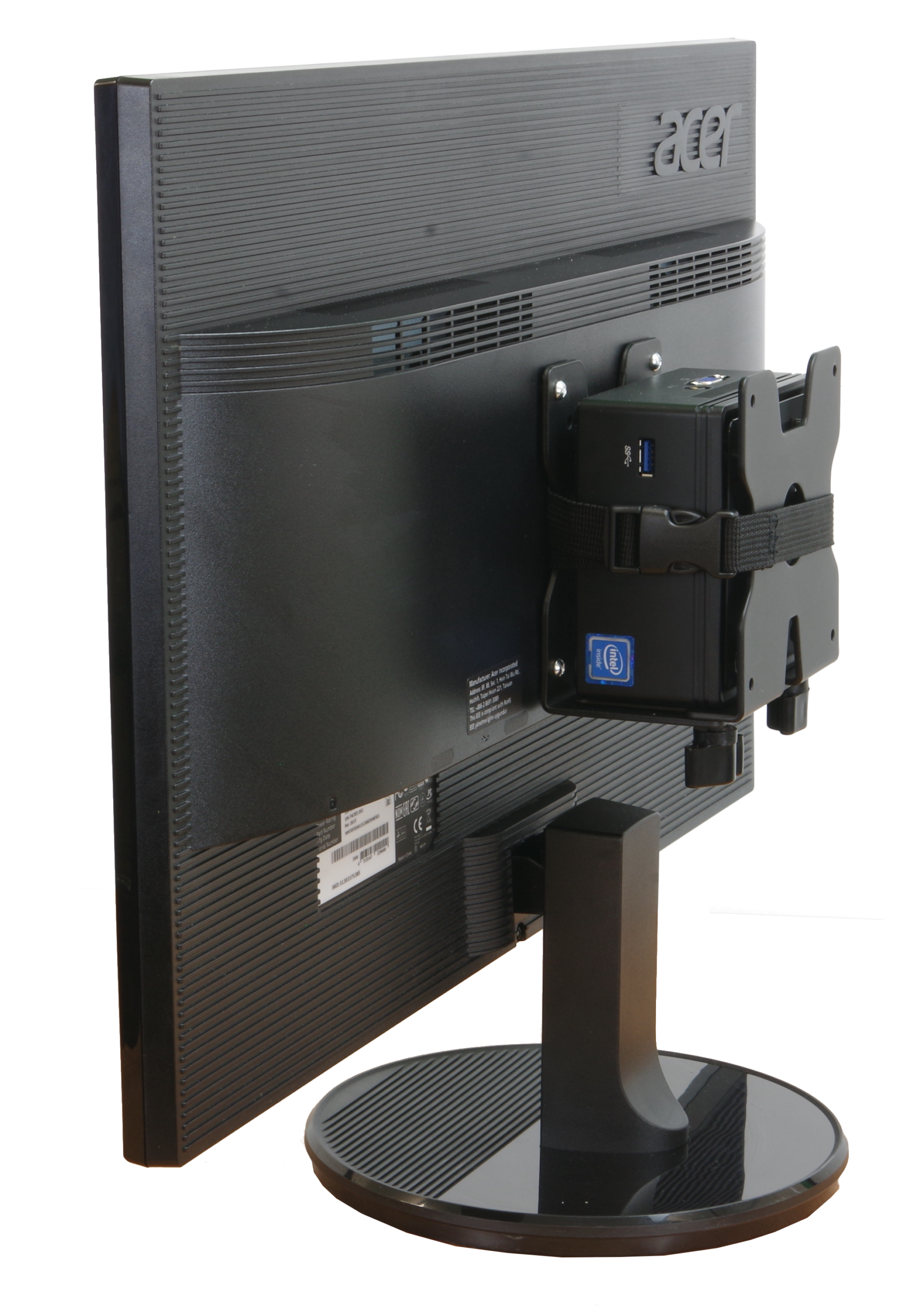

VESA Mount (Monitor/Arm): Install the bracket directly to the VESA 75×75 or 100×100 holes on the back of your monitor. You can even “sandwich” it between a monitor and a monitor arm for an ultra-clean look.
-

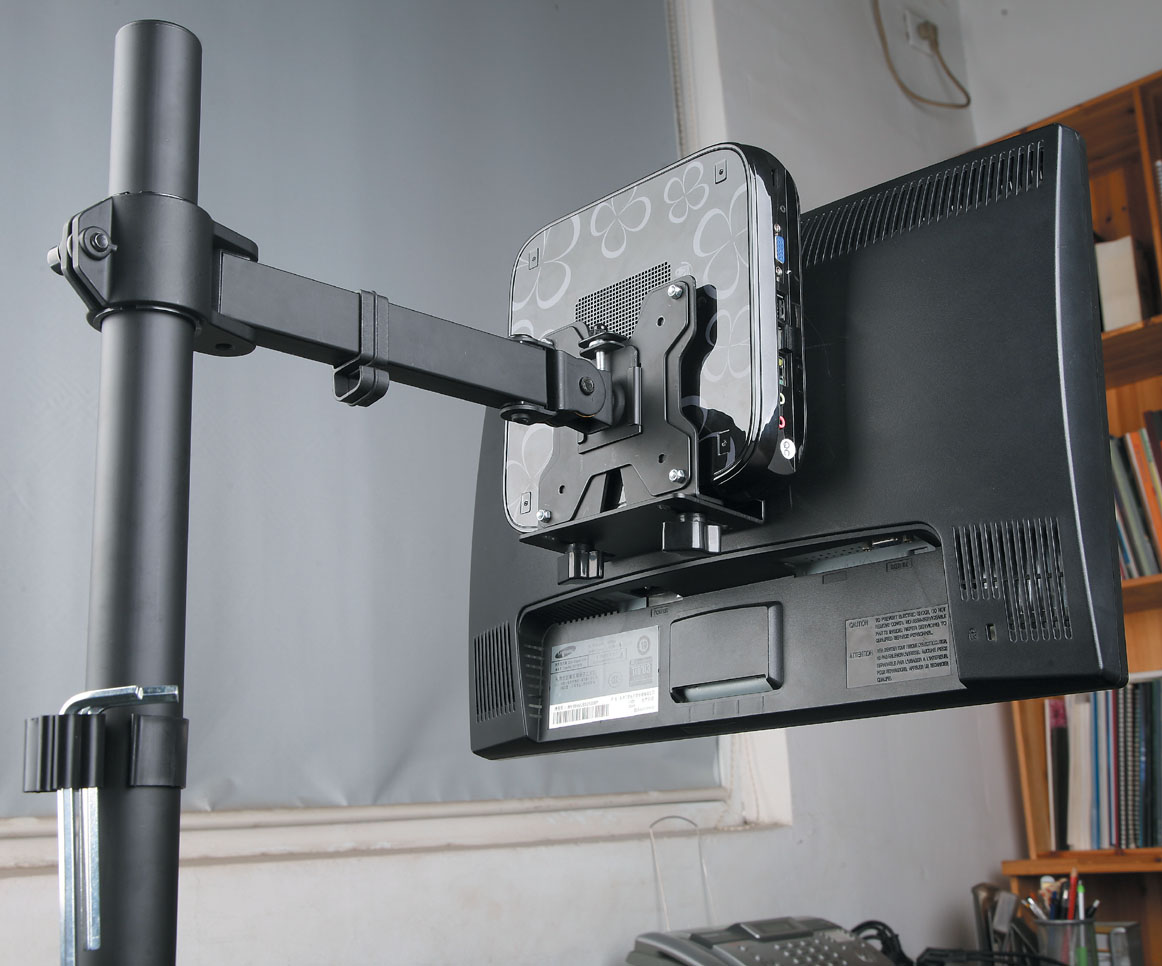

Pole Clamp: Use the included heavy-duty clamp to attach your Mini PC to a standard monitor arm pole (compatible with 35mm to 42mm diameters).
-

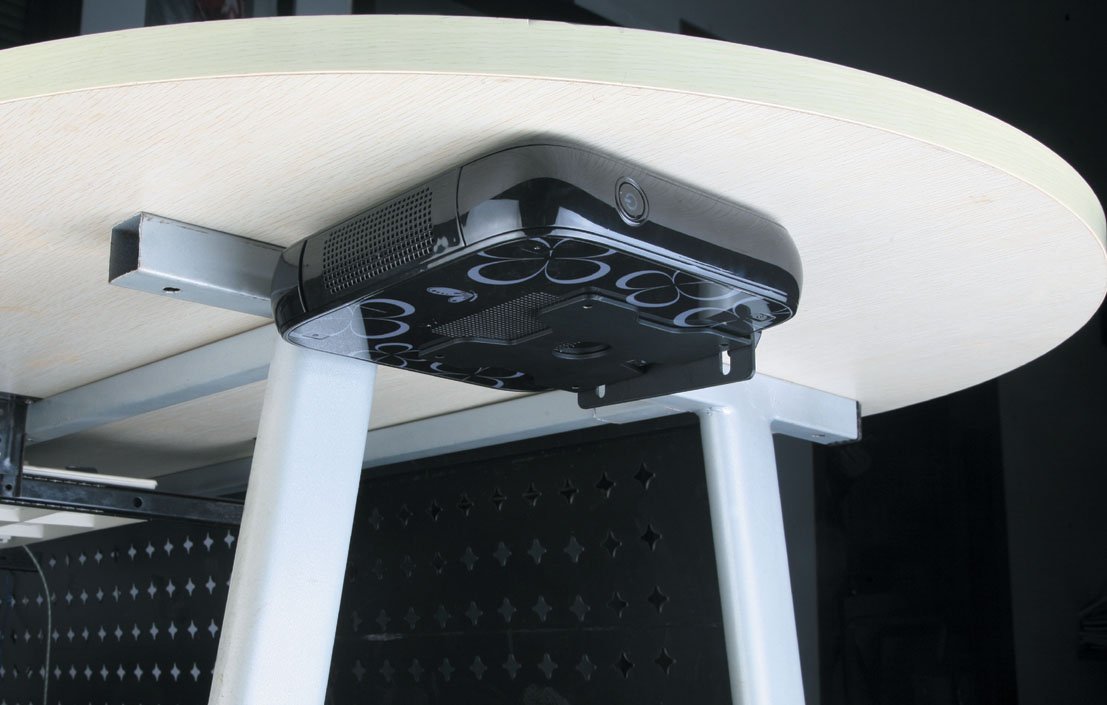

Under-Desk Mount: Secure the bracket to the underside of your wooden desktop to keep your computer completely off the workspace.
| Feature | Specification Details |
| Model | TCM01 |
| Material | Heavy-Duty Powder Coated Steel |
| VESA Compatibility |
75x75mm and 100x100mm |
| Device Width Range |
15mm – 63mm |
| Maximum Weight Load |
5kg (11lbs) |
| Pole Clamp Range |
35mm – 42mm diameter |
| Bracket Dimensions |
124mm (Height) x 118mm (Width) |
