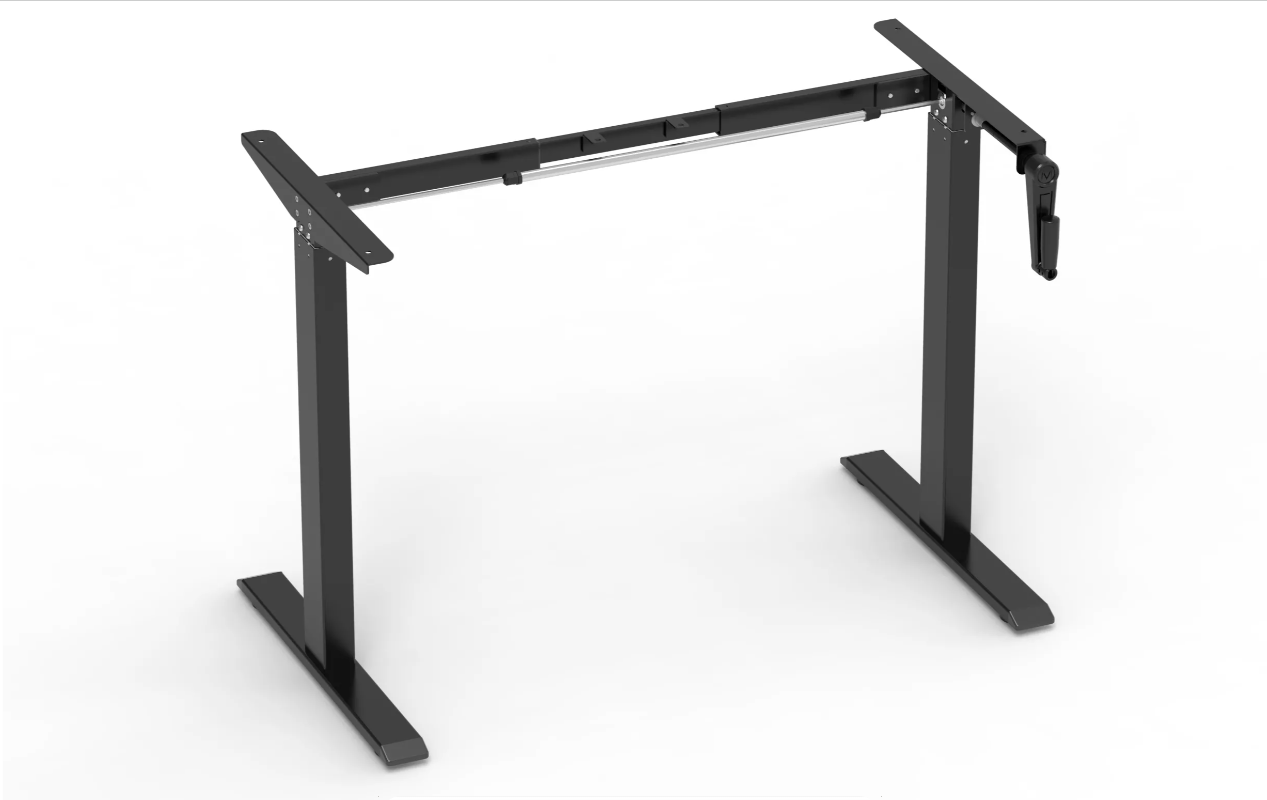

Crano Crank Height Adjustable Desk Frame

Excluding VAT

  • Economical crank sit-stand desk frame, available in Crano and Crano Junior models.
  • Features a folding handle for safe, space-saving, and easy height adjustments (16mm/turn speed).
  • Heavy-duty construction supports a max load of 70 KG for both models.

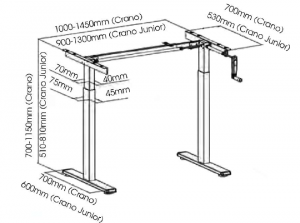

  • Crano Model: Height range 700-1150 mm; Telescopic Frame width 1000-1450 mm; Feet size 700x75mm; Top bracket size 700x50mm; Supports tops 1000 – 1600mm WIDE & 700 – 800mm DEEP. Available in Silver.

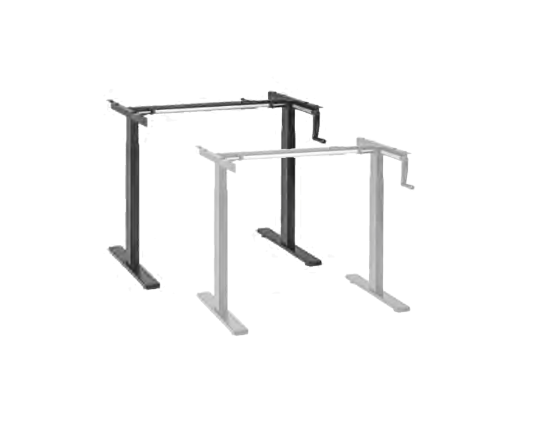

  • Crano Junior Model: Height range 510 -810 mm; Telescopic Frame width 900-1300 mm; Feet size 600x75mm; Top bracket size 530x50mm; Supports tops 900 – 1400mm WIDE & 550 – 600mm DEEP. Available in Black and Silver.
  • Crano Minus (New Model): Bridges the gap between models by combining the Adult Height Range (700-1150 mm) with a compact footprint. Telescopic Frame width 900-1300 mm; Feet size 600x75mm; Top bracket size 530x50mm; Supports tops 900 – 1400mm WIDE & 550 – 600mm DEEP. Available in Black and Silver.
  • Both Crano Junior and minus models feature 75×40 mm column (leg) size and include levelling footpads, upgradable to wheels. The Crano Adult features a 75×45 mm column (leg) size.

Description

Elevate your workspace with the Crano Crank Height Adjustable Desk Frame, an economical and versatile solution designed for both home and office environments. This robust sit-stand desk frame allows for effortless transitions between sitting and standing positions, promoting better posture and increased productivity throughout your day. Featuring a convenient folding handle, it ensures safe and space-saving operation, making it ideal for various setups. The telescopic width design accommodates desktops of different shapes and sizes, offering exceptional flexibility for your workspace needs. Both the Crano Junior and Crano models offer a robust 70kg max load capacity.

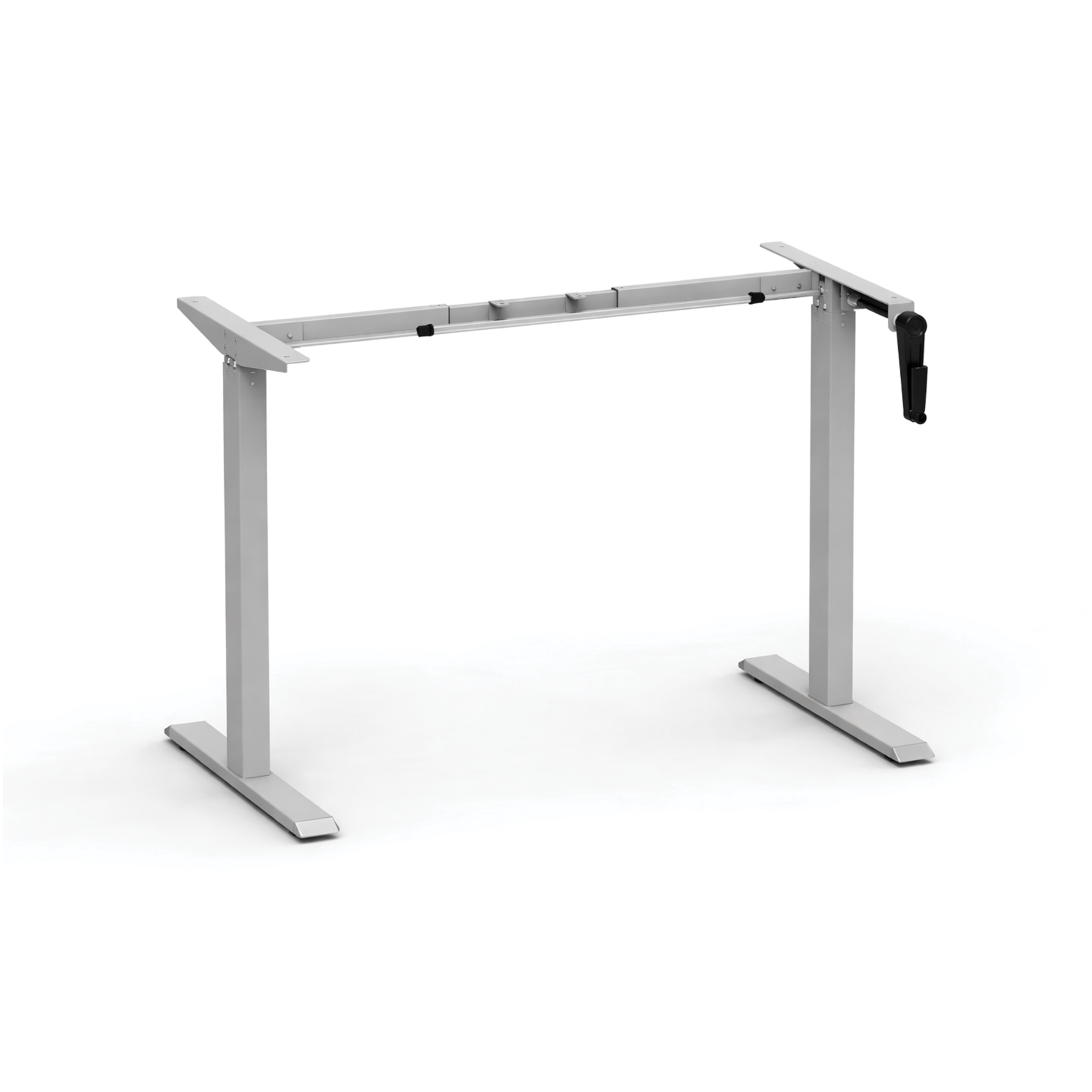

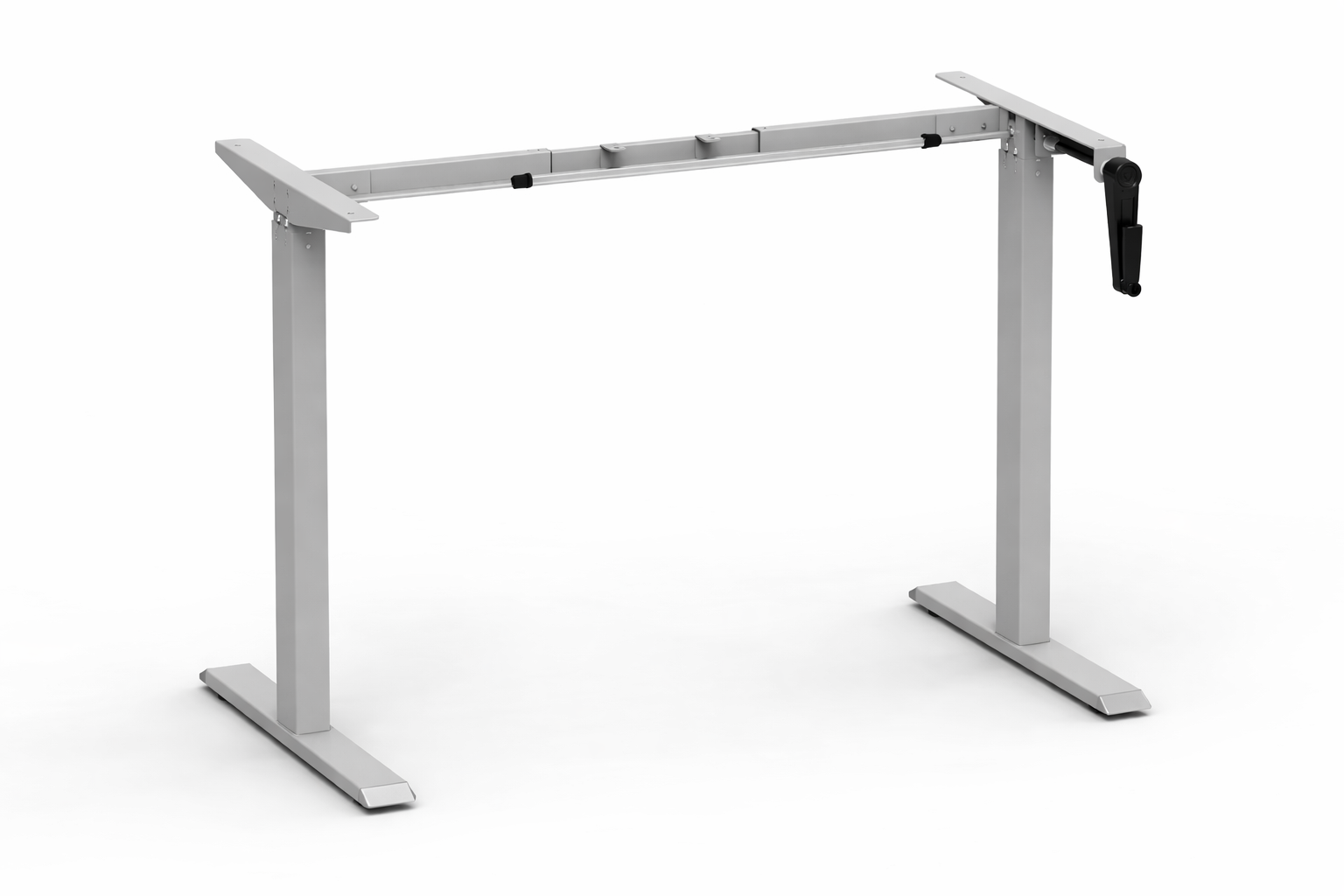

The Crano series offers two distinct models to cater to diverse requirements. For a broader height adjustment, the Crano (CRD02) model offers a range of 700-1150mm and a telescopic width of 1000-1450mm, available in Silver. Both models share a consistent crank speed of 16mm/turn and a robust max load capacity of 70 KG, ensuring stability and ease of use. It features a 75×45 mm column (leg) size. The Crano Junior (CRD03) model provides a height-adjustable range of 510-810mm and a telescopic width range of 900-1300mm, perfect for more compact spaces. It’s available in both Black and Silver.

The Crano Minus (CRD02-) is our newest addition to the series, designed specifically for users who need a full adult sit-stand height range but are working with limited floor space. By swapping the standard Crano feet and crossbars for the Junior series components, we have created a frame that supports tops as narrow as 900 mm while still reaching a maximum height of 1150 mm. Both Crano Junior and Crano minus models features a smooth 16mm/turn folding handle and 75×40 mm column (leg) size and include levelling footpads, upgradable to wheels. It’s available in both Black and Silver.

Like all Crano frames, it features a smooth 16mm/turn folding handle and 75x45mm column legs for maximum stability.



Crafted with heavy-duty steel construction and featuring levelling footpads (upgradable to wheels), the Crano desk frame provides a sturdy and reliable foundation for your desktop equipment. The simple crank mechanism allows you to adjust the desk height smoothly by turning the handle clockwise to raise and counter-clockwise to lower. Invest in a Crano Crank Height Adjustable Desk Frame to enhance your comfort, optimize your workspace, and embrace a healthier work-life balance, backed by a 5-year warranty.



Dimensions

Product – Crano (CRD02)

Weight 18kg
Dimensions (W) 1000-1450mm (H) 700-1150mm (D) 700mm

Packaging

Weight 18kg
Dimensions 94x26x18 cm

Product – Crano Junior (CRD03)

Weight 15kg
Dimensions (W) 900-1300mm (H) 510-810mm (D) 600mm

Packaging

Weight 15kg
Dimensions 94x26x18 cm

Product – Crano Minus (CRD02-)

Weight 15kg
Dimensions (W) 900-1300mm (H) 510-810mm (D) 600mm

Packaging

Weight 15kg
Dimensions 94x26x18 cm



Downloads

Crano Manual: Download PDF

Crano Junior Manual: Download PDF

Crano Sizes : Download PDF

Crano Specification Sheet: Download PDF
